S Style Wiring Loom

There are several versions of the S type wiring loom available for you to choose from. The include:

• 5 way, 1 Volume, 2 Tone for SSS, HSS or HSH
• 3 way, 1 Volume, 2 Tone for SSS
• 3 way, 1 Volume, 1 Tone for SSS or HH
• 5 way, 1 Volume, 1 Tone for SSS or HH

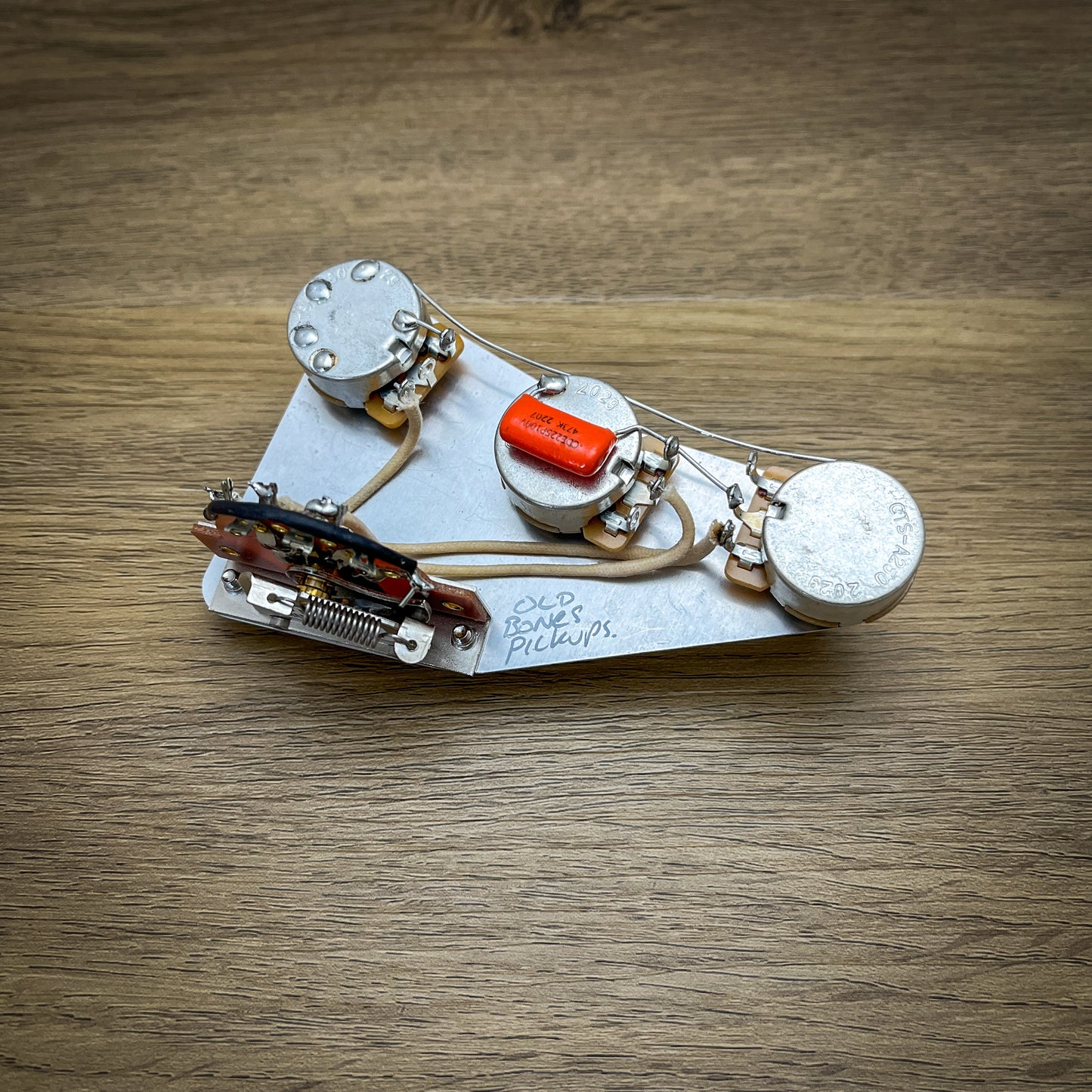

Standard configuration Strat looms (1 Volume, 2 Tone) will come one a ground plate as pictured, other configurations will not as the spacing between controls can vary slightly between brands.

All looms are made with CTS pots, Sprague Orange Drop caps (PIO available upon request), and Switchcraft Jacks. The switches vary depending on configuration chosen.

All the pots supplied are based on imperial measurements, so please be aware that you may need to increase the diameter of the control plate holes, and purchase new control knobs for the pots to fit correctly.

If you would like to modify the loom at all (change capacitor values etc. let me know prior to ordering so I can advise of any price changes).
